字符點陣模組
Display Format Picture Model No. Outline Dimension
(mm)
Viewing Area
(mm)
Active Area
(mm)
Dot Pitch
(mm)
Dot Size
(mm)
Duty Interface IC part No. Drawing
16*2 STCE16205 With backlight series STCE16205SLYHB 84*44*14.5 64*17.9 56.2*11.5 3.55*5.95 2.95*5.55 1/16 ST7066U-0A-B
16*2 STCE16202 Without backlight series STCE16202HRB 85*29.5*10 64*17.9 56.2*11.5 3.55*5.95 2.95*5.55 1/16 ST7066U-0A-B
40*2 STCE40400 Without backlight series STCE40400S1HB 190*54*10 148*30.3 140.45*23.16 3.53*6.09 2.78*4.89 1/16 ST7066U-0A-B
40*4 STCE40400 With backlight series STCE40400S1LYHB 190*54*14 148*30.3 140.45*23.16 3.53*6.09 2.78*4.89 1/16 ST7066U-0A-B
40*2 STCE40200 Without backlight series STCE40200SRHB 182*33.5*10 154*16.5 147.5*11.53 3.7*5.95 3.2*5.55 1/16 ST7066U-0A-B
40*2 STCE40200 With backlight series STCE40200S1LYHB 182*33.5*14 154*16.5 147.5*11.53 3.7*5.95 3.2*5.55 1/16 ST7066U-0A-B
24*2 STCE24200 Without backlight series STCE24200NHB 118*36*10 94.5*18 88.3*11.5 3.7*5.95 3.2*5.55 1/16 ST7066U-0A-B
24*2 STCE24200 With backlight series STCE24200SLYHB 118*36*14.5 94.5*18 88.3*11.5 3.7*5.95 3.2*5.55 1/16 ST7066U-0A-B

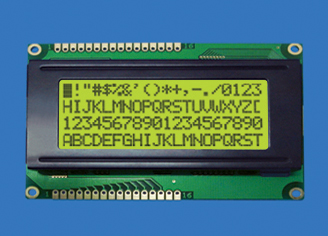

20*4 STCE20400 Without backlight series STCE20400NRB 98*60*10.5 76*25.5 70.4*20.8 3.55*5.35 2.95*4.75 1/16 ST7066U-0A-B
20*4 STCE20400 With backlight series STCE20400S1LYHB 98*60*14.5 76*25.5 70.4*20.8 3.55*5.35 2.95*4.75 1/16 ST7066U-0A-B
20*2 STCE20200 Without backlight series STCE20200NRHB 116*37*10.5 82.2*18.2 73.5*11.5 3.7*5.95 3.2*5.55 1/16 ST7066U-0A-B
20*2 STCE20200 With backlight series STCE20200S1LYHB 116*37*14.5 82.2*18.2 73.5*11.5 3.7*5.95 3.2*5.55 1/16 ST7066U-0A-B

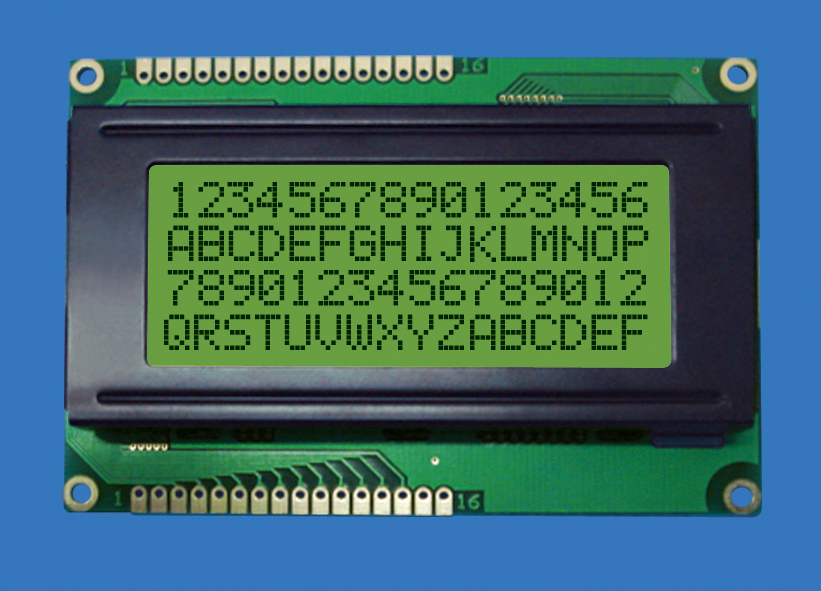

16*4 STCE16400 Without backlight series STCXE16218F L3WHB-08 87*60*10 61.4*25 56.2*20.8 3.55*5.35 2.95*4.75 1/16 ST7066U-0A-B
16*4 STCE16400 With backlight series STCE16400SLYHB 87*60*14.5 87*60*14.5 56.2*20.8 3.55*5.35 2.95*4.75 1/16 ST7066U-0A-B
16*2 STCE16205 Without backlight series STCE16205S1HB 84*44*10 64*17.9 56.2*11.5 3.55*5.95 2.95*5.55 1/16 ST7066U-0A-B
